Products — Smart Meters, DCUs, Smart MCBs & Switchgear

Smart Energy Meter · Single-Phase

Single-Phase 10–60A / 5–30A Smart Energy Meter

4G / 2GRFNB-IoTBIS Certified

Reference standards	IS 16444, IS 13779, IS 15959, IS 15884, CBIP 325, IEC 62052 / 62053 / 62056
Voltage	110V–240V operating range
Current Ib (Imax)	5(30)A, 5(40)A, 5(60)A, 10(60)A
Starting current	0.2% Ib
Frequency	50 Hz, 60 Hz
Accuracy	Active Class 1, optional reactive Class 2
Ingress protection	Up to IP54
Operating temperature	−25°C to +70°C (storage −40°C to +80°C)
Relative humidity	≤ 95%
Local interfaces	Optical port; optional RS485 / RS232 / BLE
Remote interfaces	RF Mesh, GPRS, 3G, 4G, NB-IoT
Dimensions	199 × 144 × 74 mm

IS 16444 Part 1DLMS (IS 15959)Bi-directional commsPrepaid & postpaidNet meteringFOTARemote connect / disconnectLoad-switching relayTamper eventsPower-fail alertsOn-demand readingTOD tariff

Smart Energy Meter · Three-Phase

Three-Phase 10–60A / 20–100A Smart Energy Meter

4G / 2GRFNB-IoT

Reference standards	IS 16444, IS 13779, IS 15959, IS 15848, CBIP 325, IEC 62052 / 62053 / 62056
Voltage	3×220/380V, 3×240/415V
Current Ib (Imax)	10(60)A, 20(100)A
Starting current	0.2% Ib
Frequency	50 Hz, 60 Hz
Accuracy	Active Class 1, optional reactive Class 2
Ingress protection	Up to IP54
Operating temperature	−25°C to +70°C (storage −40°C to +80°C)
Relative humidity	≤ 95%
Local interfaces	Optical port; optional RS485 / RS232 / BLE
Remote interfaces	RF Mesh, GPRS, 3G, 4G, NB-IoT
Dimensions	232 × 164 × 73.5 mm

IS 16444 Part 1DLMS (IS 15959)Bi-directional commsPrepaid & postpaidNet meteringFOTARemote connect / disconnectLoad-switching relayTamper eventsPower-fail alertsOn-demand readingTOD tariff

Energy Meter & Net Meter

Single-Phase 5–30A Energy & Net Meter

IRDANet MeteringBIS Certified

Reference standards	IS 13779 (2020)
Voltage	110V–240V operating range
Current Ib (Imax)	5(30)A
Starting current	0.2% Ib
Frequency	50 Hz, 60 Hz
Accuracy	Active Class 1
Ingress protection	Up to IP54
Operating temperature	−25°C to +70°C
Relative humidity	≤ 95%
Remote interface	IRDA
Dimensions	148 × 112 × 61 mm

IS 13779 (2020)IRDA communicationMonthly billingUltrasonic weldingMagnet / AC-DC chopping detectionImmune to 35 kVUtility-specific protocolTamper protection

Concentrator & Edge Intelligence

Data Concentrator Unit (DCU)

HPLCRS-485Edge AnalyticsTopology

Local data collection for transformer-area operations. The DCU aggregates meter and switch data at the transformer area, applies edge analytics, and forwards clean, structured data to the head-end — reducing transmission load and cloud-storage pressure.

Transformer-area network topology visualization and phase identification
Line-loss analysis, power-quality monitoring and fault-event reporting
Seamless access to measuring switches, DIN-rail meters and IoT meter boxes
Edge computing reduces transmission delay, bandwidth load and cloud-storage pressure

Smart MCBs

High-integration control, communication and protection

Metering, switching and communication combined in a compact device that drops into existing panels — no cabinet redesign required.

Single-Phase Smart MCB

Compact metering, switching and communication in a 2-pole format

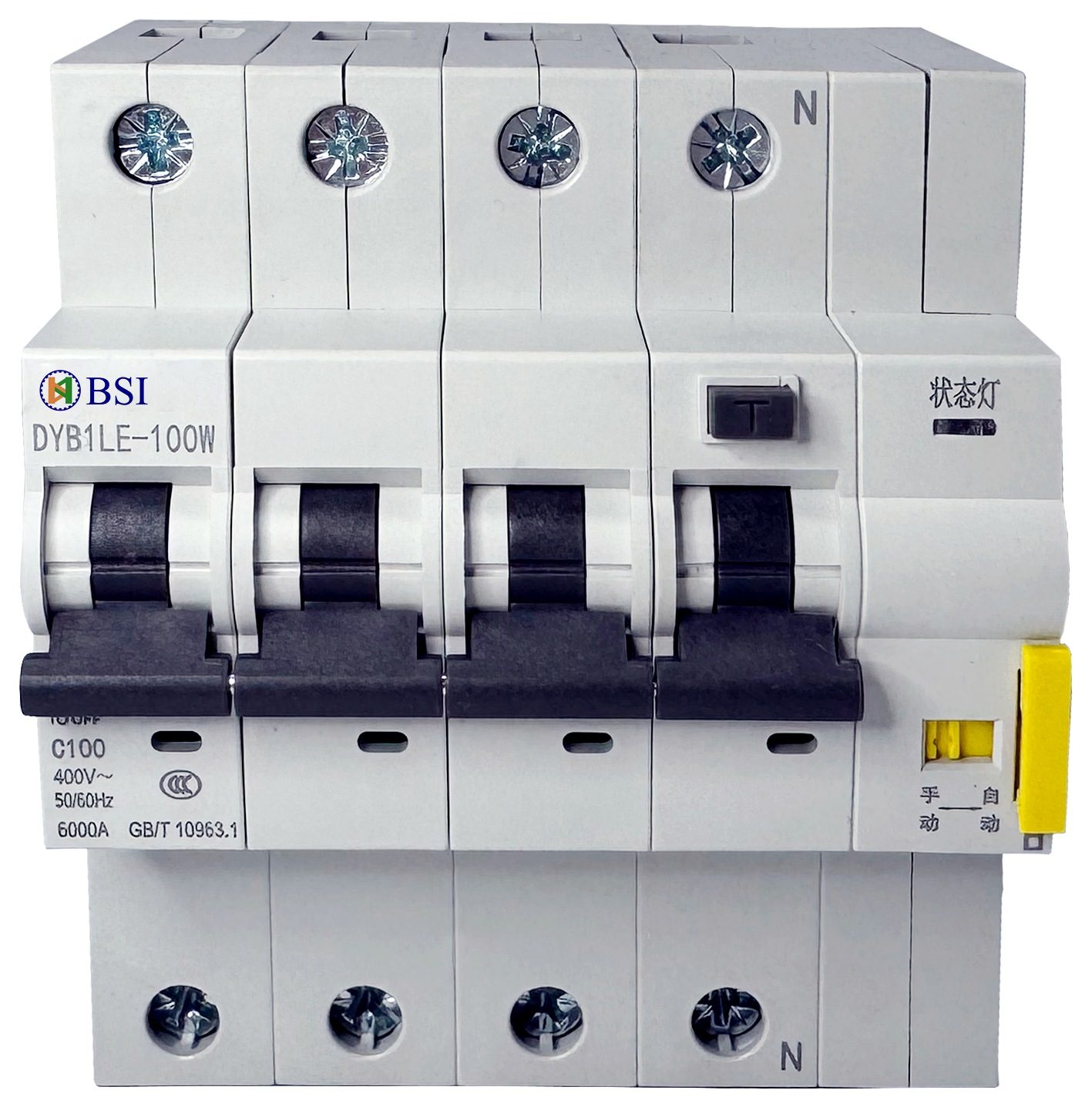

Three-Phase Smart MCB

Multi-pole metering and remote control for three-phase circuits

Integrates PV breaker, protocol converter, interface converter and HPLC communication concepts
Supports distributed-energy flexible / firm control, high-precision metering and full data collection
Built for power-quality monitoring, protection and compact deployment inside existing panels

Intelligent Switchgear

Measuring switches and PV protection devices

Smart Measuring Switch

AC400V · 125A class · RS-485

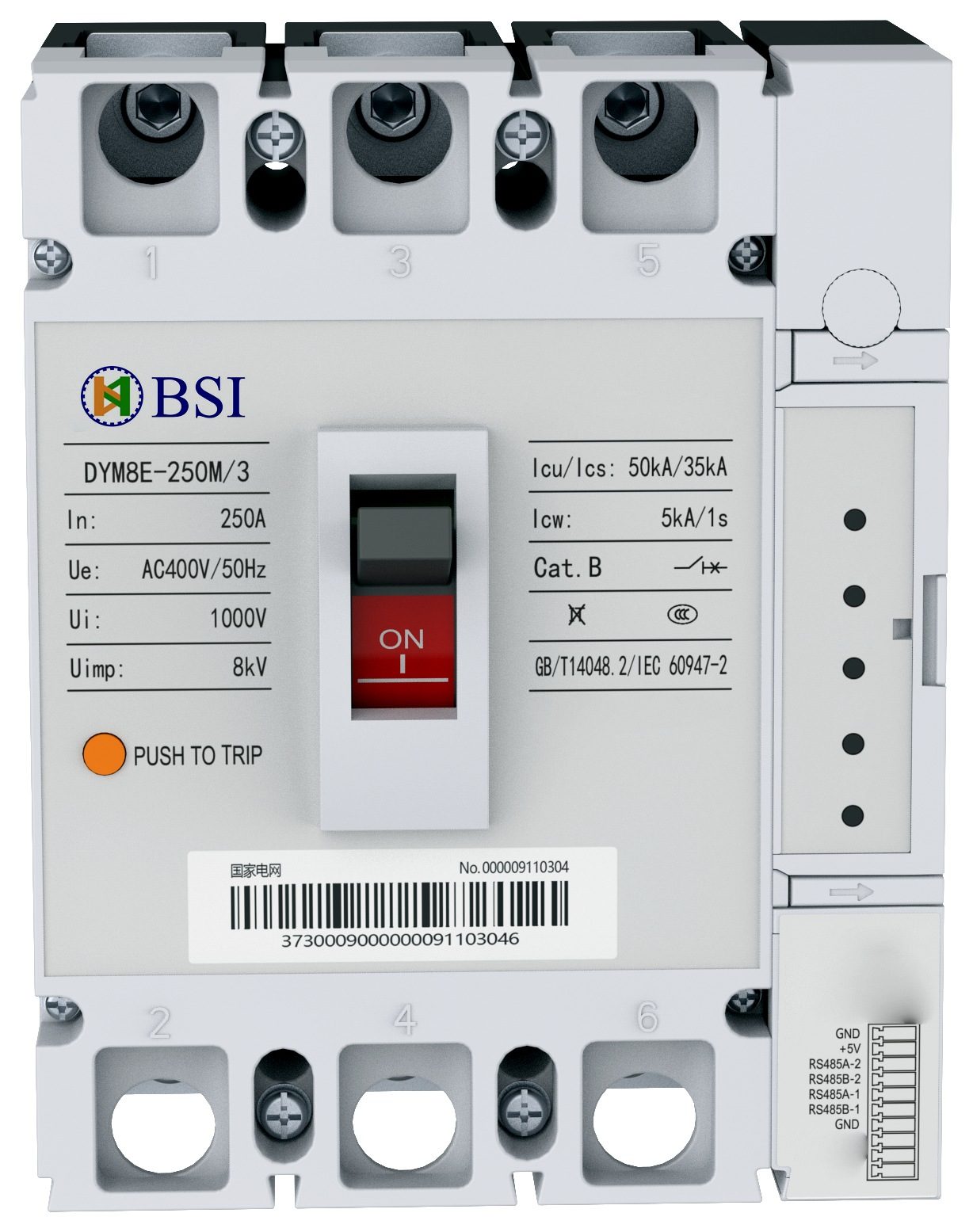

250A Measuring Switch

IEC 60947-2 · metering + control

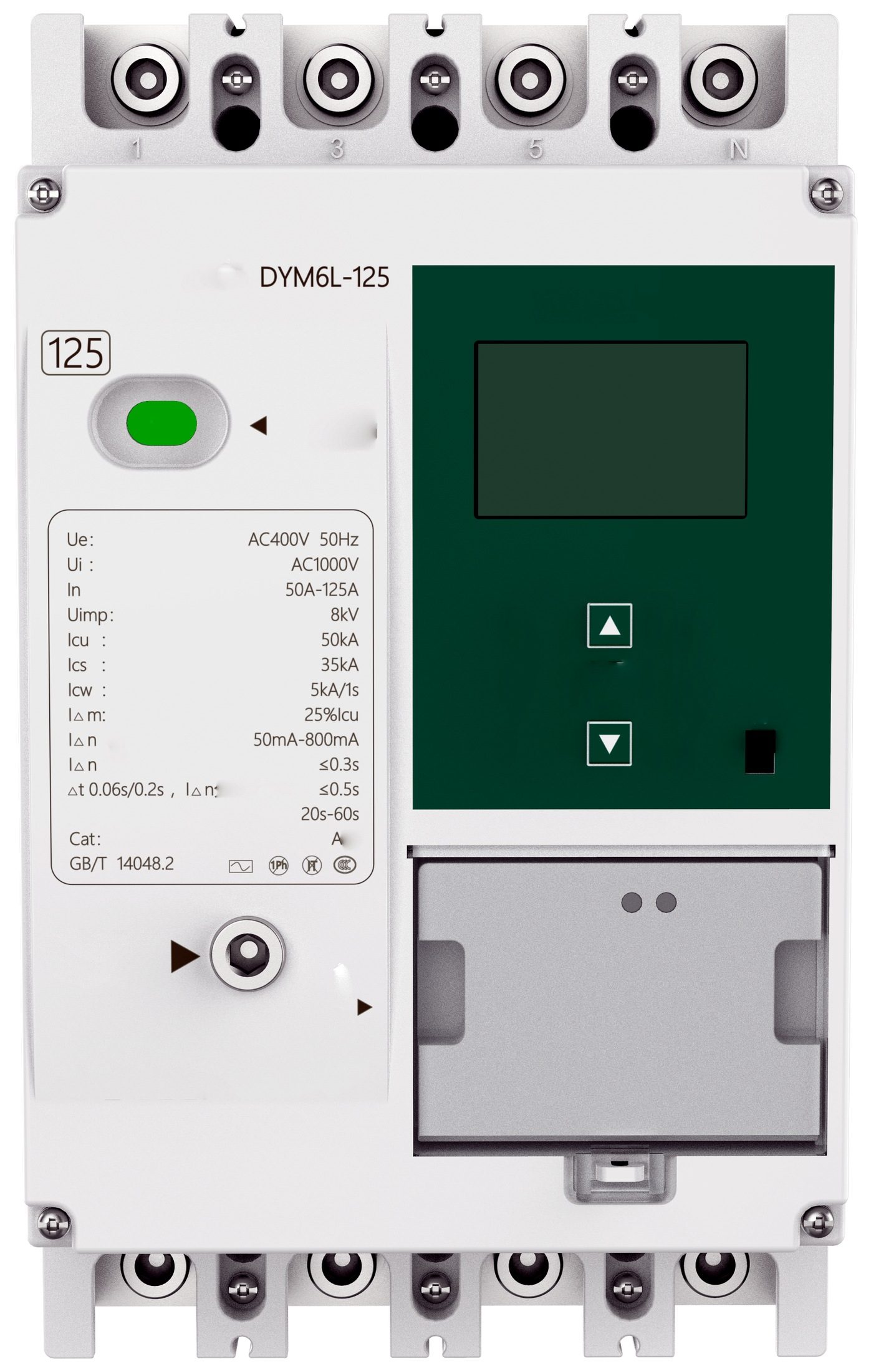

PV Residual-Current Breaker

50–125A · AC400V · protection logic

Real-time monitoring of voltage, current and terminal temperature
Fault analysis and remote control for operational response
Advanced arc-extinguishing and intelligent-trip design for fast protection

Low-Voltage Distribution IoT

From meters to a visible feeder network

BSI's low-voltage IoT solution integrates sensing chips, acquisition devices and intelligent switches over broadband power-line communication — giving utilities a lower-cost route to full visibility without redesigning cabinets, branch boxes or meter enclosures.

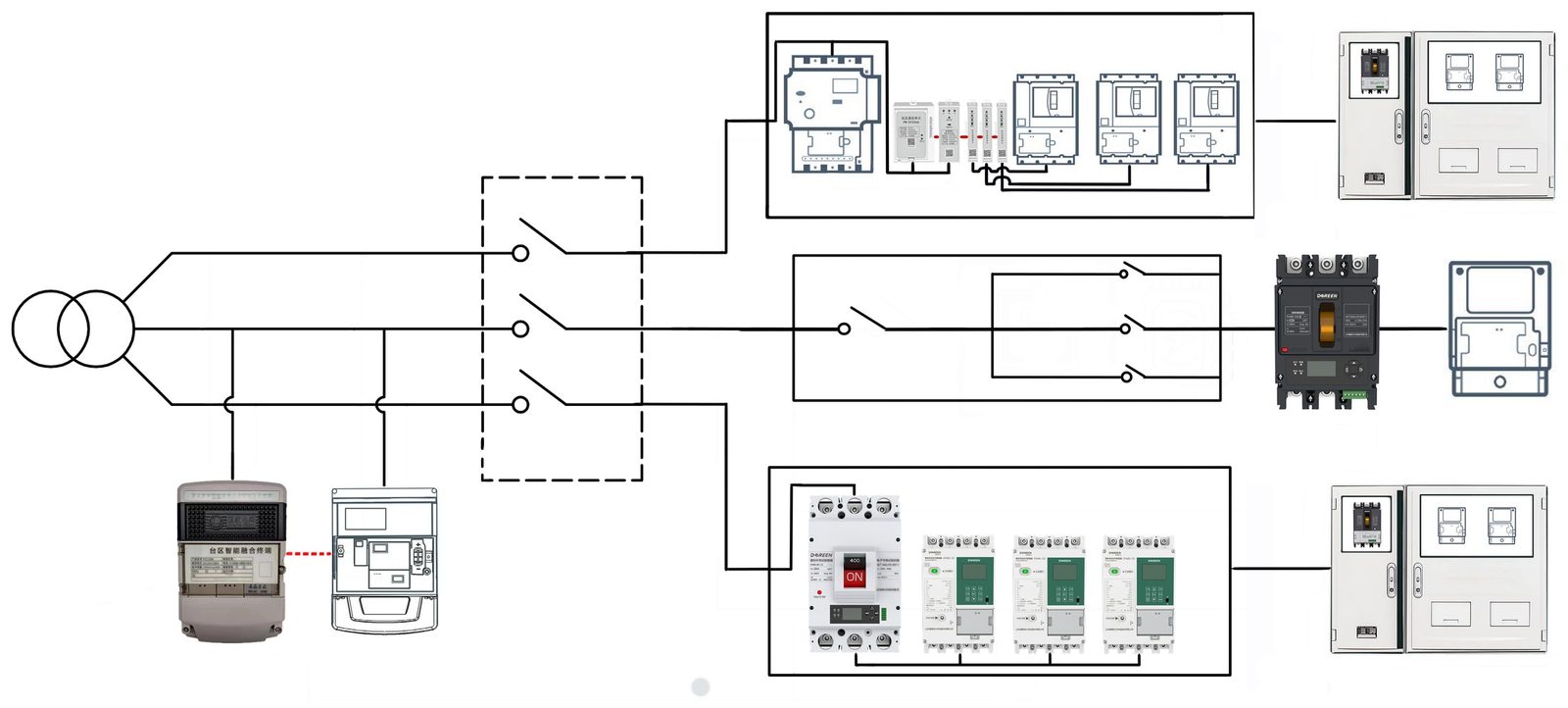

Low-voltage distribution IoT architecture

Residential, commercial & industrial

Premises metering and control at every consumer class.

Renewables & net metering

Import / export monitoring for rooftop and distributed generation.

Smart grid & energy management

Utility-scale visibility and operational analytics.

Network modernization

Distribution-network field automation without redesign.

From the consumer terminal to the transformer area
